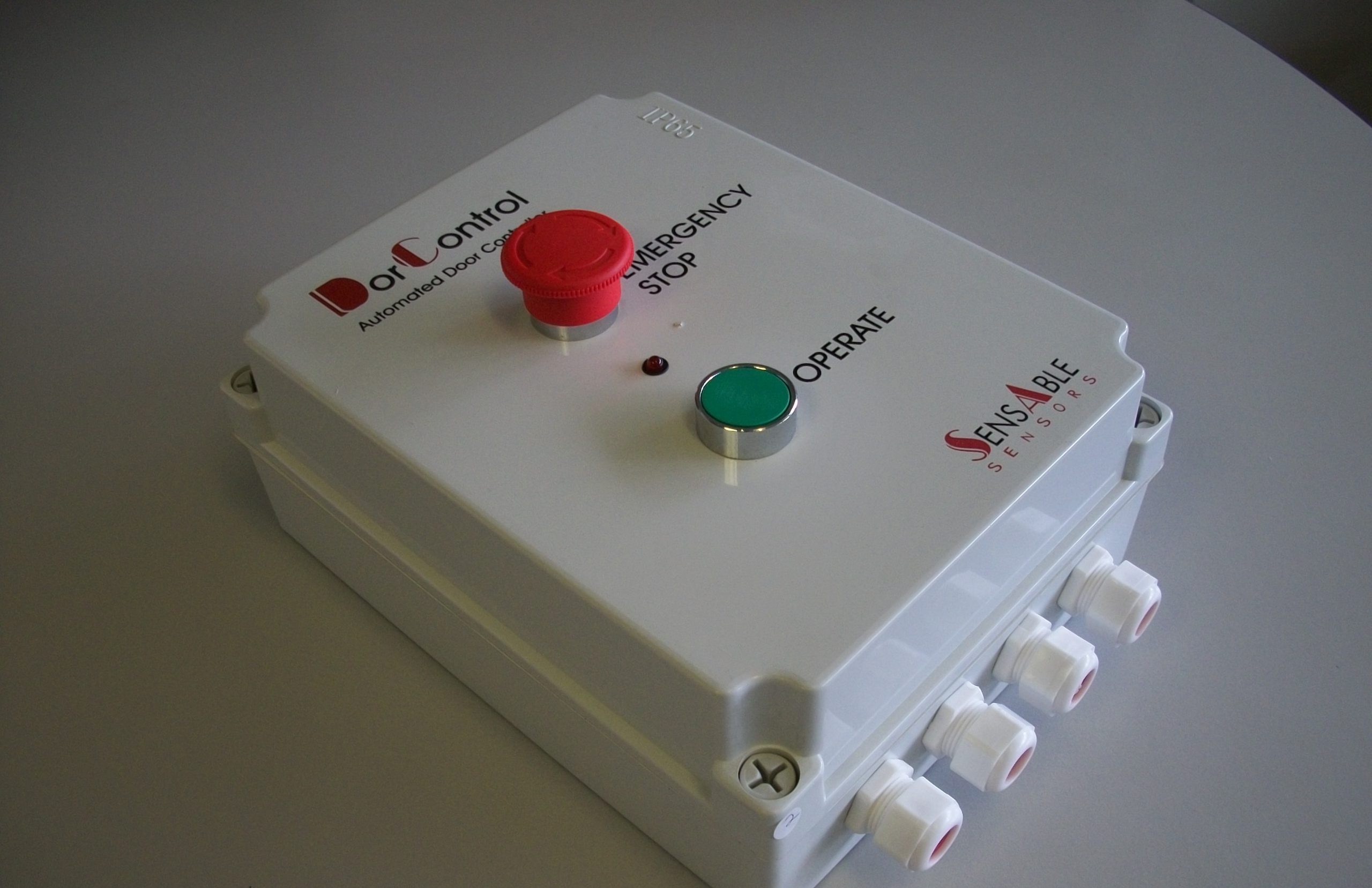

DorCONTROL Automated Door Controller

Automated door controller for industrial roller shutter, roll-up and sectional door systems, available in 1PH and 3PH.

Features

Available in 1PH and 3PH
Open / Close and Half Open commands
Traffic light card optional
Remote control function
Safety cut-out circuit
LED indications
Auto close function
Photocell facility

Specifications

Voltage	1PH 230V AC ±10%; 3PH 380V AC ±10%
Current input	5A max
Motor output	0.55 kW
Protection	IP65
Dimensions	160 x 240 x 90 mm
Accessory power supply	24 DC 100 mA
Temperature range	-40°C to +80°C

Specifications: Available in 1PH and 3PH; Open / Close & Half Open commands; Traffic light card (optional); Voltage: 1PH 230V AC ±10%; Current: INPUT 5A MAX; Motor Output: 0.55kW.

(The Company reserves the right to amend product specifications and information without notice.)
