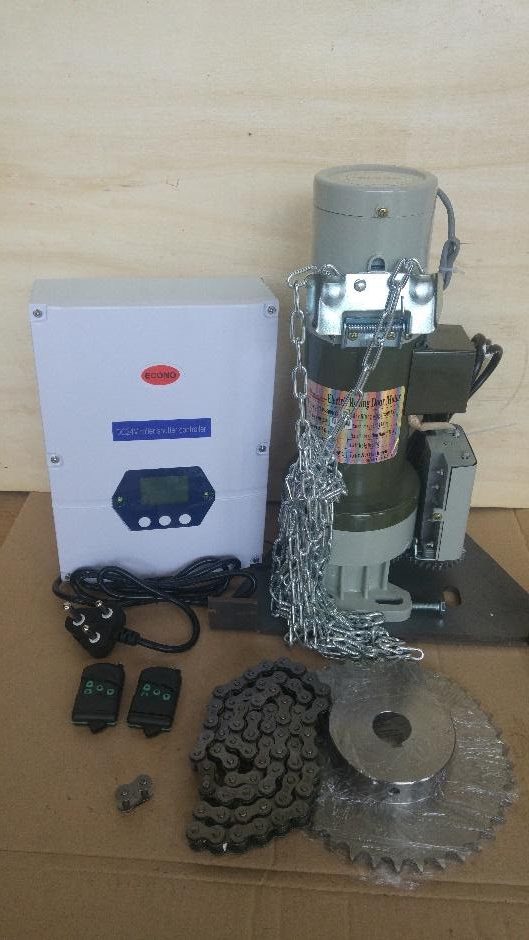

ECONO 500DC-24 Chain Drive Operator for Sprung Roller Shutters

ECONO 500DC-24 Chain Drive Operator for Sprung Roller Shutters

Economy chain drive operator with battery backup for spring balanced roller shutters up to 420 kg.

Features

Economical automation solution
Mechanical limit switches
Hand chain override
1 phase 220V power supplied
Basic package includes LCD controller with Open / Stop / Close pushbuttons
Includes battery backup and controls

Specifications

Voltage	220V AC supply voltage; 24V DC motor drive
Output torque	Dependant on drive ratio
Motor protection	Thermal cut-out
Motor output	0.24 kW
Speed	±8 rpm at supplied drive ratio
Duty cycle	< 5 operations / hr (dependant on door size)
Maximum door weight	127 mm collar – up to 420 kg (assuming minimum 50% spring loading)

(The Company reserves the right to amend product specifications and information without notice.)
