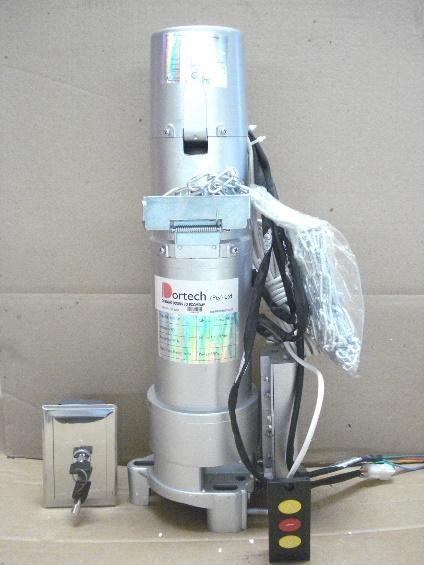

ECONO 800 Chain Drive Operator for Sprung Roller Shutters

R850.00

ECONOMY CHAIN DRIVE
For Spring Balanced Roller Shutters up to 800kg

Specifications: Economical Automation Solution; Mechanical Limit Switches; Hand Chain Override; Voltage: 220V AC (1 Phase); Current: INPUT 3A; Motor Output: 0.55kW

FEATURES
Economical Automation Solution Mechanical Limit Switches Hand Chain Override Quick Release Mechanism 1 Phase 220V & 3 Phase 380V options Basic Package Includes Open/Stop/Close Pushbutton & Metal Lock Box Plug & Play Advanced Control Available
SPECIFICATIONS
VOLTAGE	220V AC (1 Phase)
CURRENT INPUT	3A
OUTPUT TORQUE	Dependant on Drive Ratio
MOTOR PROTECTION	Thermal over load protection
MOTOR OUTPUT	0.55kW
IP RATING	IP20
MOTOR SPROCKET	9 Tooth
DOOR SPROCKET	38T 10B1 (Standard)
SPEED	±8Rpm (at supplied drive ratio)
DUTY CYCLE	< 5 operations / Hr (Dependant on door size)
