From Dortech Econo system documentation:

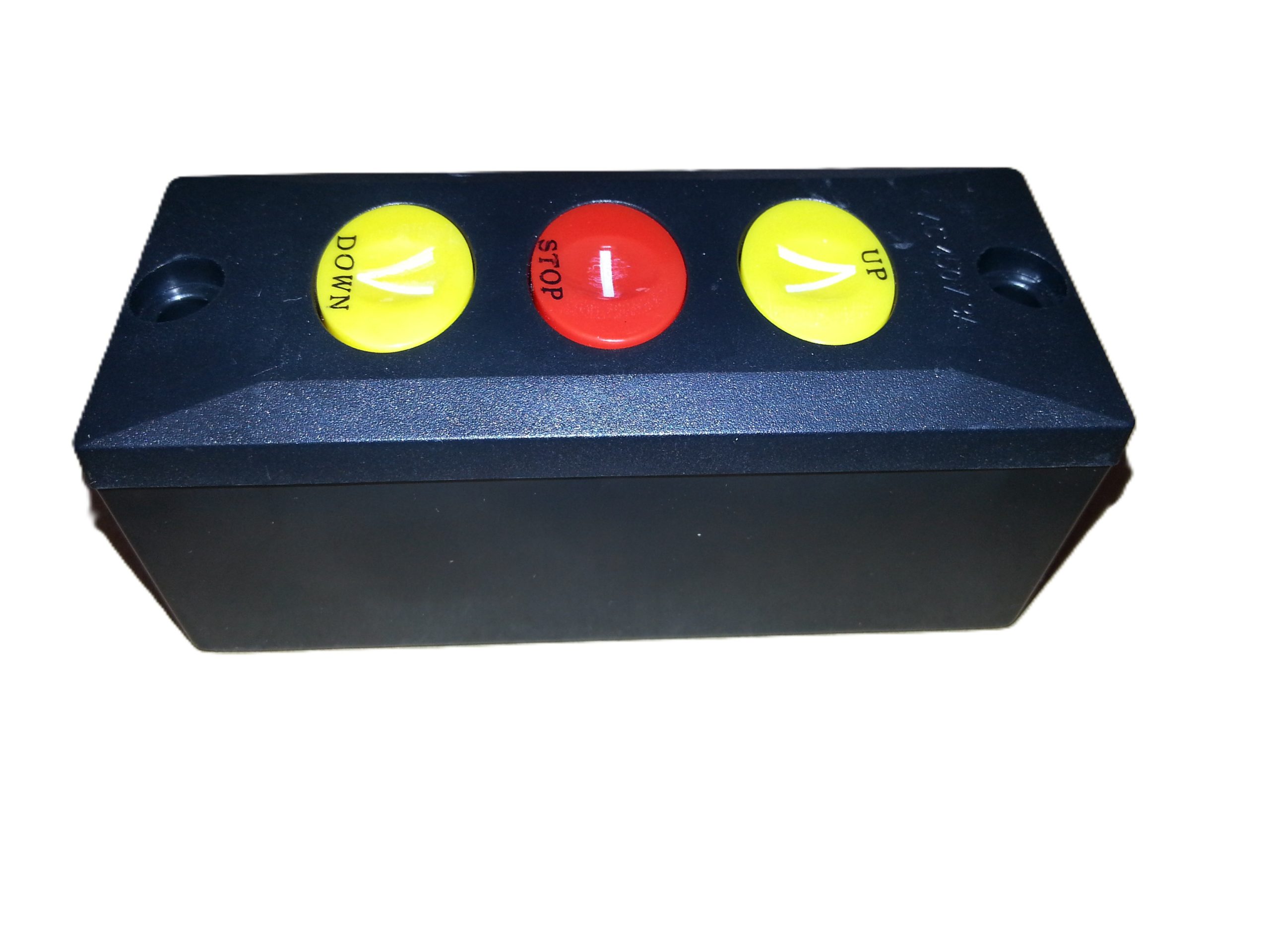

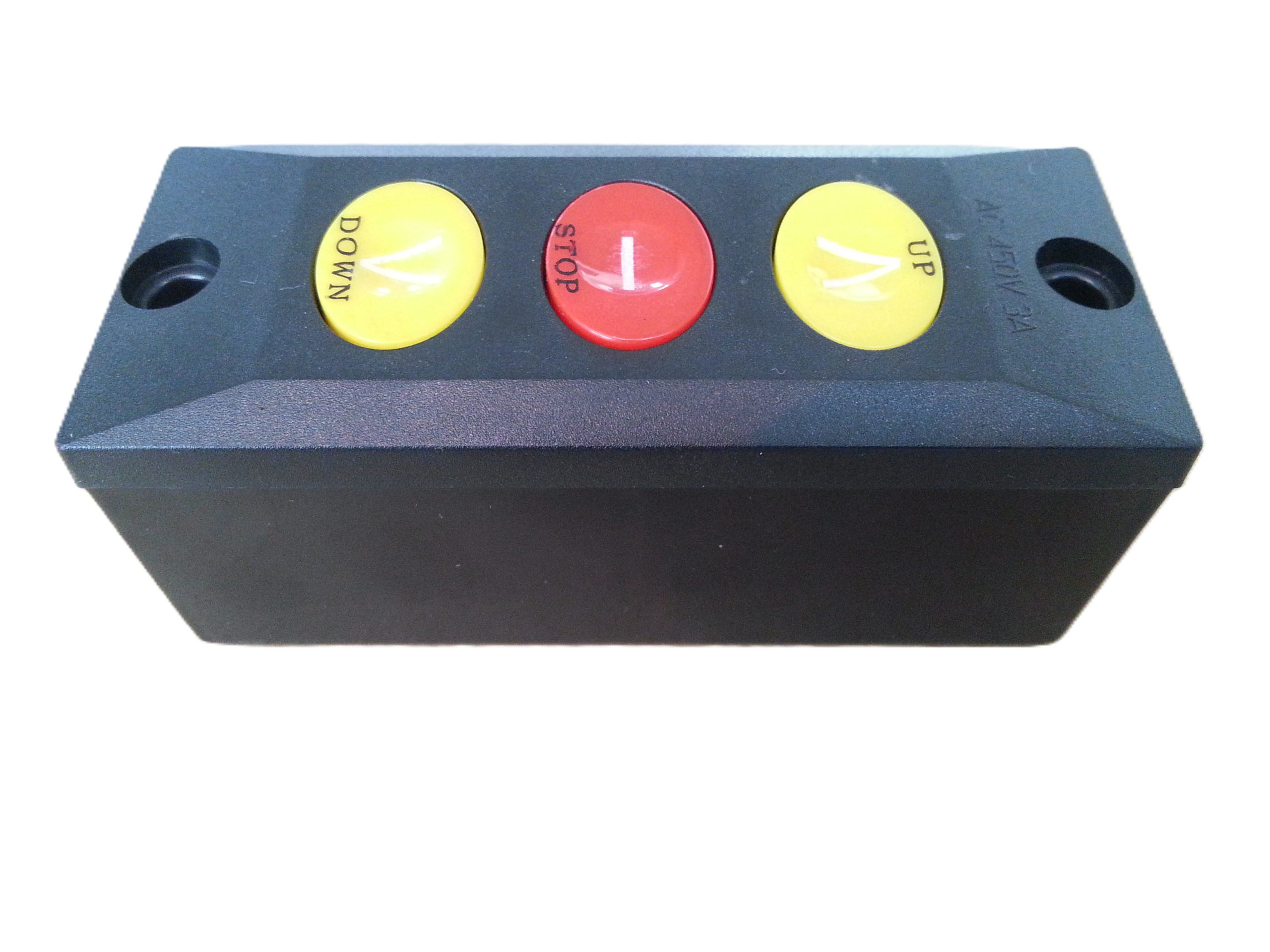

• It is a wired push-button control station
• Supplied standard with Econo chain drive operators
• Used for manual open / stop / close control of doors

In other words:
It’s a simple wall-mounted control button (or station) that sends a control signal to the motor controller.

Functional description

Based on Dortech + Marantec ecosystem design:

Core function

• Provides a momentary contact signal to the operator
• Triggers:
  • Open
  • Stop
  • Close (depending on controller logic)

Typical behaviour

• One press = step cycle (Open → Stop → Close)
• Or:
  • Separate buttons for Up / Stop / Down (in 3-button stations)

Integration

• Connects directly to:
  • Operator control board
  • Or external controller (e.g. KT500 module)

Typical technical specifications (Econo push-button station)

Because no direct spec sheet exists, these are accurate inferred specs based on Marantec-compatible push buttons and Dortech systems:

Electrical

• Type: Potential-free (dry contact)
• Voltage: No internal voltage (relay/contact output)
• Current rating: Typically 1–5A (depends on model/station)
• Connection: Wired (2-core or multi-core)

Control logic

• Momentary (pulse) operation
• Compatible with:
  • Step-by-step control inputs
  • Open / Close / Stop terminals

Mechanical

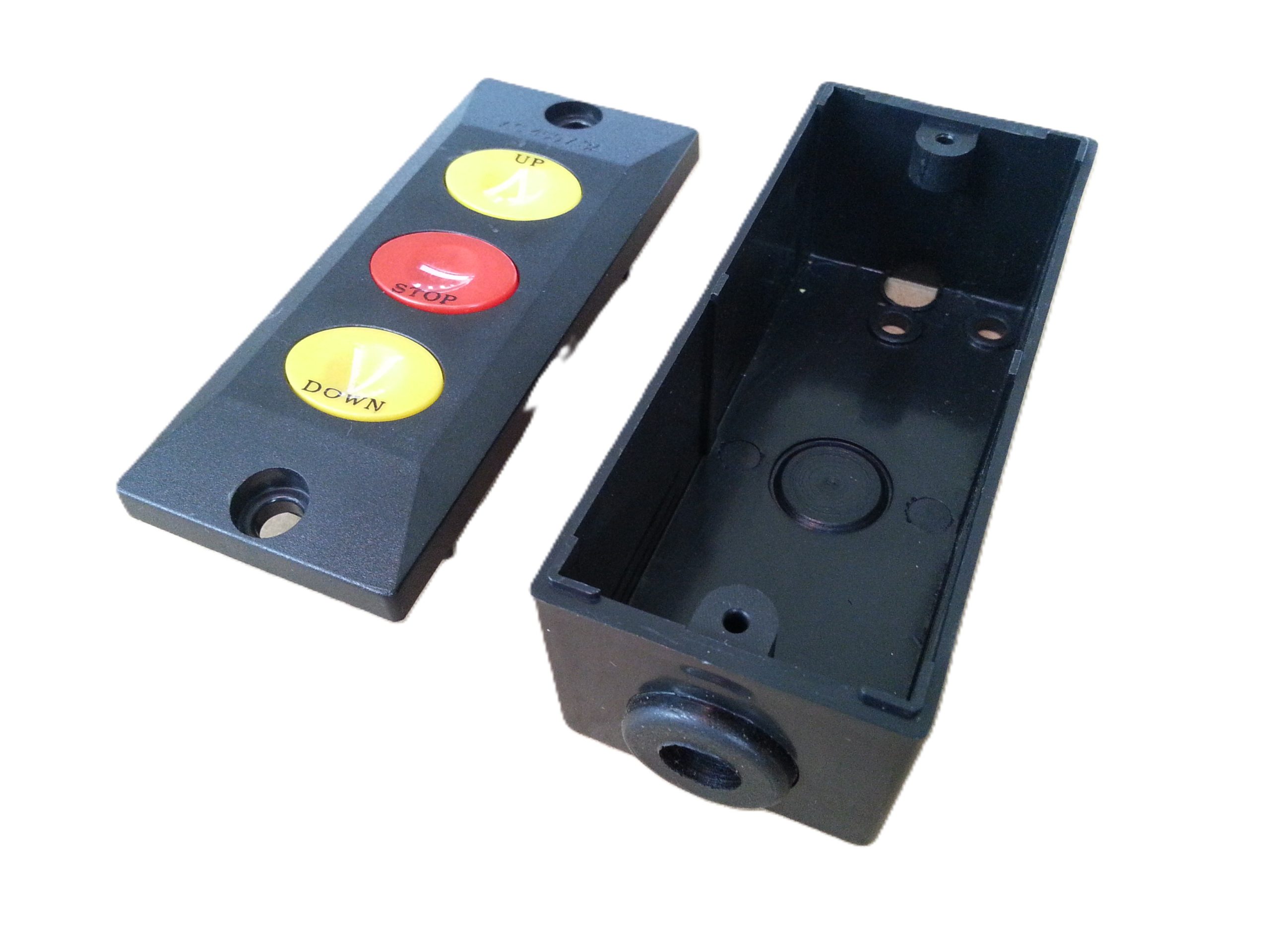

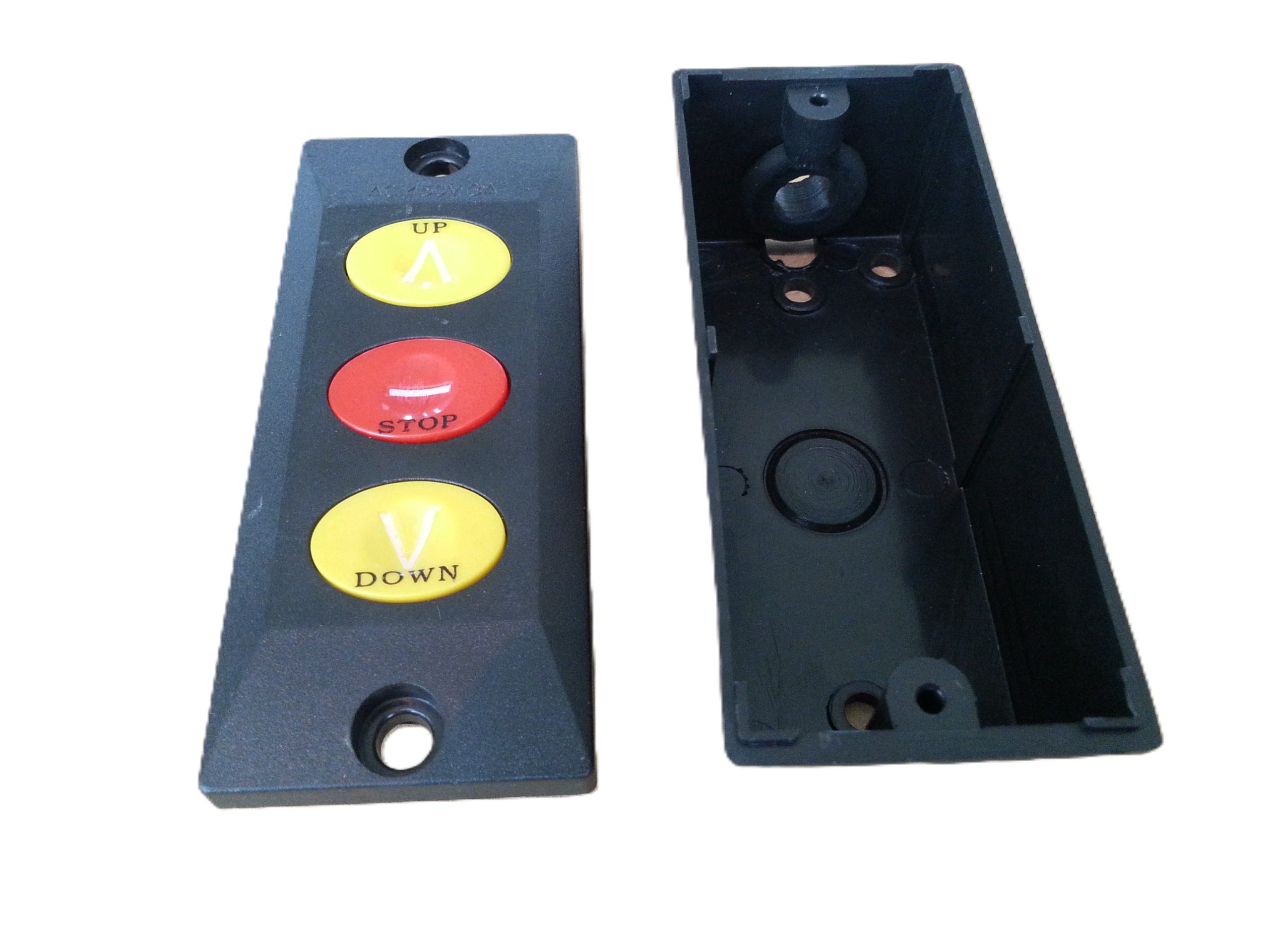

• Wall-mounted enclosure
• Industrial plastic housing
• Spring-return push buttons

Protection

• Indoor use typical (IP20–IP40)
• Industrial versions may be higher (IP54+)

How the Econo push button fits into the system

From Dortech:

• Included with:
  • Econo 600 / 800 AC drives
  • Econo DC drives
• Works alongside:
  • Remote receivers
  • Key switches
  • Photocells
• Can be expanded via:
  • KT500 controller module

Key features summary

Econo Push Button (practical spec summary):

•  Wired wall-mounted control
•  Dry contact (potential-free)
•  Plug-and-play with Econo operators
•  Basic, reliable, industrial-grade design
•  Supports step or directional control
•  Included as standard accessory

(The Company reserves the right to amend product specifications and information without notice.)
