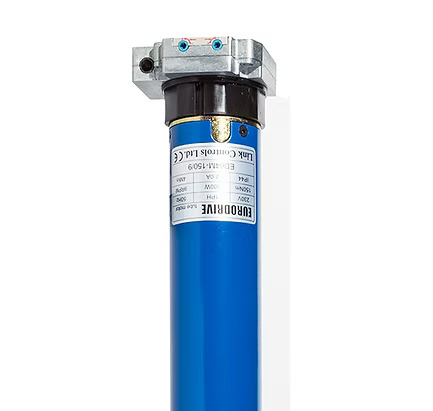

EURODRIVE 150 TUBULAR MOTOR

ED 150 tubular motor with through-drive Manual override, silent operation, mechanical limits, and tube adaptors for carious pipe sizes.

Specifications: Manual Override – Through drive; Silent Operation; Mechanical Limits; Current: 2.0 A; Torque: 150 Nm; Speed: 9 RPM

FEATURES
Manual override – through drive Silent operation Mechanical limits Adaptors sizes to suit octagonal and round tubes From 29mm offset including mounting bracket Wide range of control options Manufactured to high European standards
SPECIFICATIONS
POWER SUPPLY	230V 50Hz
CURRENT	2.0 A
POWER	500 W
TORQUE	150 Nm
SPEED	9 RPM
LIFTING CAPACITY	225kg @ 100mm
STANDARD ADAPTORS FOR TUBES	101.6mm x 3.66mm (94mm); 101.6mm x 1.63mm (97mm)
