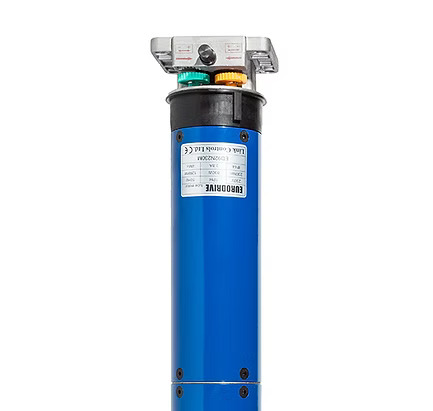

EURODRIVE Manual Overide TUBULAR MOTOR ED230

Manual override tubular motor with push-engage override, silent operation, mechanical limits, and adaptors for tube diameters from 101.6mm to 133mm.

Specifications: Manual Override – Push engage; Silent Operation; Mechanical Limits; Current: 3.8 A; Torque: 230 Nm; Speed: 12 RPM

FEATURES
Manual override – push engage Silent operation Mechanical limits Adaptors to suit tube Ø 101.6mm to 133mm 53mm offset – mounting bracket not required Range of control options Manufactured to high European standards
SPECIFICATIONS
POWER SUPPLY	230V 50Hz
CURRENT	3.8 A
POWER	830 W
TORQUE	230 Nm
SPEED	12 RPM
LIFTING CAPACITY	350kg @ 100mm; 280kg @ 127mm; 265kg @ 133mm
STANDARD ADAPTORS FOR TUBES	101.6mm x 3.66mm (94mm); 101.6mm x 1.63mm (97mm); 127mm x 3.25mm (119mm); 133mm x 5mm (123mm)
