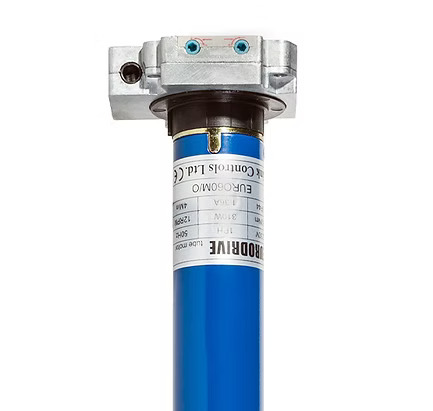

EURODRIVE 60 TUBULAR MOTOR

Manual override tubular motor with through-drive override, silent operation, mechanical limits, and adaptors for round and octagonal tube applications.

Specifications: Manual Override – Through drive; Silent Operation; Mechanical Limits; Current: 1.36 A; Torque: 60 Nm; Speed: 12 RPM

FEATURES
Manual override – through drive Silent operation Mechanical limits Adaptors to suit round and octagonal tube From 29mm offset including mounting bracket Wide range of control options Manufactured to high European standards
SPECIFICATIONS
POWER SUPPLY	230V 50Hz
CURRENT	1.36 A
POWER	310 W
TORQUE	60 Nm
SPEED	12 RPM
LIFTING CAPACITY	90kg @ 100mm; 100kg @ 90mm; 110kg @ 70mm; 120kg @ 60mm
STANDARD ADAPTORS FOR TUBES	101.6mm x 3.66mm (94mm); 101.6mm x 1.63mm (97mm); 89mm x 1.5mm (85mm); 80mm x 1.5mm (76mm); 80mm x 2mm (75mm); 70mm x 1.5mm (67mm); 64mm x 1.5mm (60mm); 63mm x 1mm (60mm); 60mm x 1.5mm (56mm); 70mm Octagonal (67mm); 60mm Octagonal (57mm); 50mm Octagonal (48mm)
