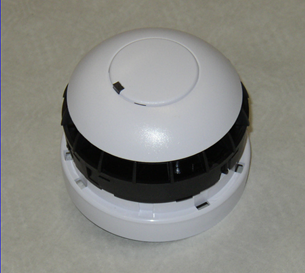

HEAT & SMOKE DETECTOR For use with EMC-3C

Combined heat and smoke detector with integral sounder for use with the EMC-3C fire door interface panel.

FEATURES
3 adjustable temperature settings Variable sound output LED indication 3 adjustable settings for smoke density Selectable response
SPECIFICATIONS
TEMPERATURE SETTINGS	Heat Setting 1: 58°C Rate of Rise; Heat Setting 2: 58°C Fixed; Heat Setting 3: 90° Fixed; Sounds 2 & 3 can alternatively be provided with an Alternating Tone (800-970Hz) or Sweep Up Tone (800-970Hz) respectively.
NORMAL OPERATION	LED flashes every 20 seconds
ALARM	LED is continually illuminated until reset
DIMENSIONS	65mm x 105mm
