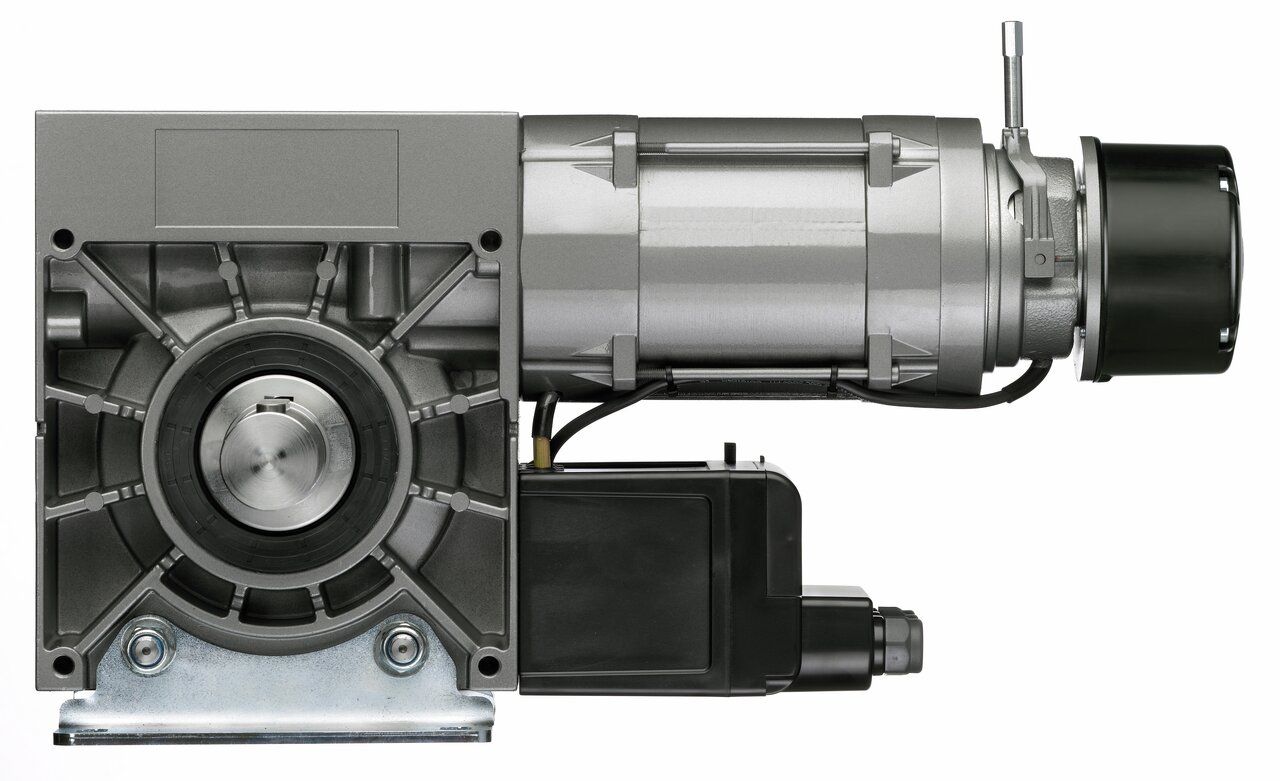

KD 30 Chain Drive

The KD 30 is engineered for demanding industrial environments, delivering powerful and reliable operation for heavy-duty roller shutter doors. Its robust worm drive gearbox ensures precise control and consistent performance.

Built to handle intensive use, the KD 30 offers strength, durability, and operational stability. For enhanced safety, the use of an external safety catch device is recommended.

Key Features

• High torque for heavy-duty doors
• Durable worm drive gearbox
• Built for commercial applications
• Reliable performance under load
• Compatible with safety catch systems


  KD 30 — Specifications

  Specification	Details
  Model	KD 30
  Application	Large roller shutter doors
  Power Supply	230V / 400V (Single or Three Phase)
  Motor Type	AC Industrial Motor
  Output Torque	Approx. 300 Nm
  Drive Type	Worm Gear Drive
  Limit System	Mechanical Limits
  Duty Cycle	Heavy Duty
  Mounting	Chain Drive (Indirect)
  Protection Rating	IP54
  Safety	Compatible with external safety catch
  Usage	Industrial / Commercial
