Emergency Stop Push Button (Mushroom Type)

Product Description

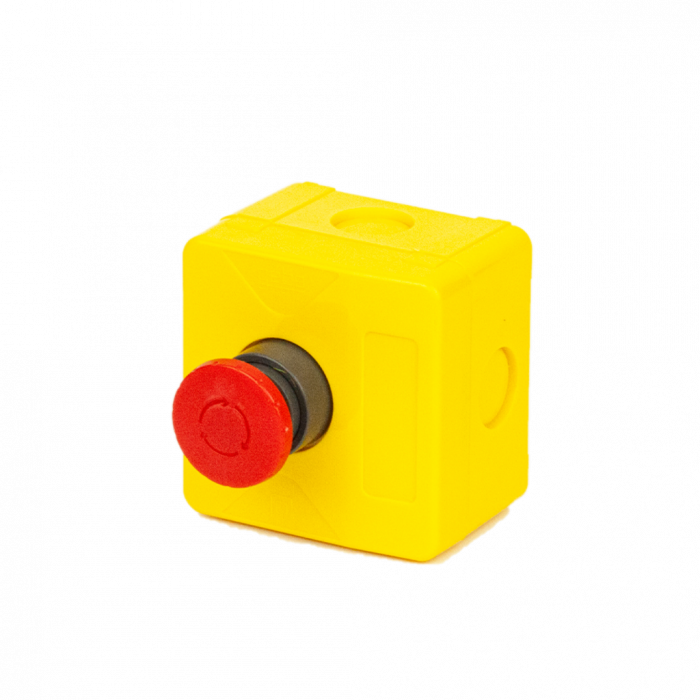

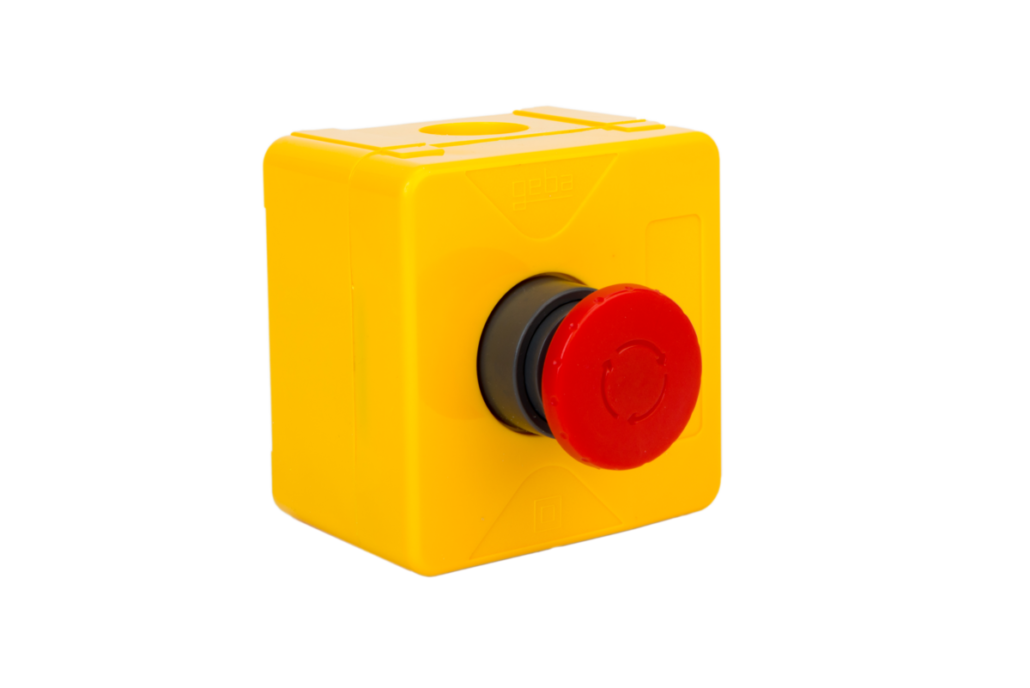

The Marantec KDT 1-N is a surface-mounted emergency stop push button (mushroom head type) designed for industrial door and gate control systems.

• It is a safety control device used to immediately stop door or motor operation
• Features a latching (maintained) emergency stop function
• Suitable for:
  • Marantec control panels (CS series, etc.)
  • Third-party control systems

 Official description:

“Emergency impact mushroom, latching, surface installation, plastic housing, IP65”

Functional Operation

• Pressing the red mushroom head:
  • Activates emergency stop (NC contact opens)
  • Stops door movement immediately
• The button remains latched (locked) after activation
• Requires manual reset (twist/pull) to resume operation

 This complies with standard industrial emergency stop safety principles

Key Features

•  Red mushroom emergency button on yellow background
•  Latching (detent) function
•  Surface-mounted housing
•  Weather-resistant (IP65)
•  Universal compatibility with control systems
•  Designed for industrial environments

The design meets requirements for emergency stop devices

Technical Specifications

Electrical

• Connection type: Conventional wiring
• Number of contacts: 1
• Contact type:
  1 NC (normally closed)

Mechanical / Construction

• Housing material: Plastic
• Push button type: Emergency stop (mushroom head)
• Mounting type: Surface mount

Environmental

• Protection rating: IP65
  • Dust-tight
  • Protected against water jets

Dimensions & Weight

Scope of Supply

• Emergency stop push button unit (complete assembly)

Compatibility

• Works with:
  • Marantec CS control panels
  • Industrial door operators (STA, MDF, etc.)
  • Third-party control systems

 Designed as a universal emergency stop accessory

Application Areas

• Industrial sectional doors
• Roller shutter doors
• Automated gates
• Machinery requiring emergency stop control
