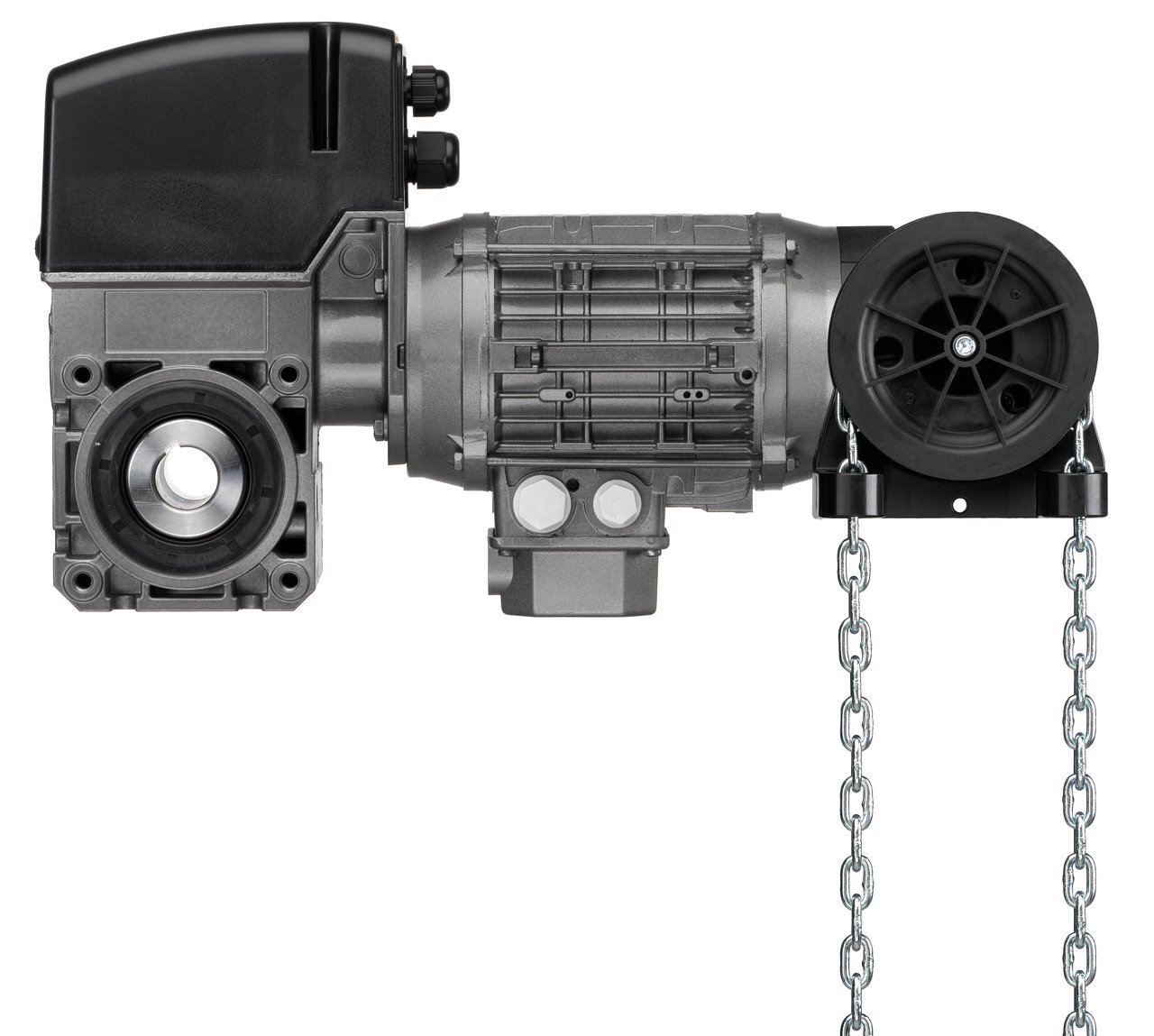

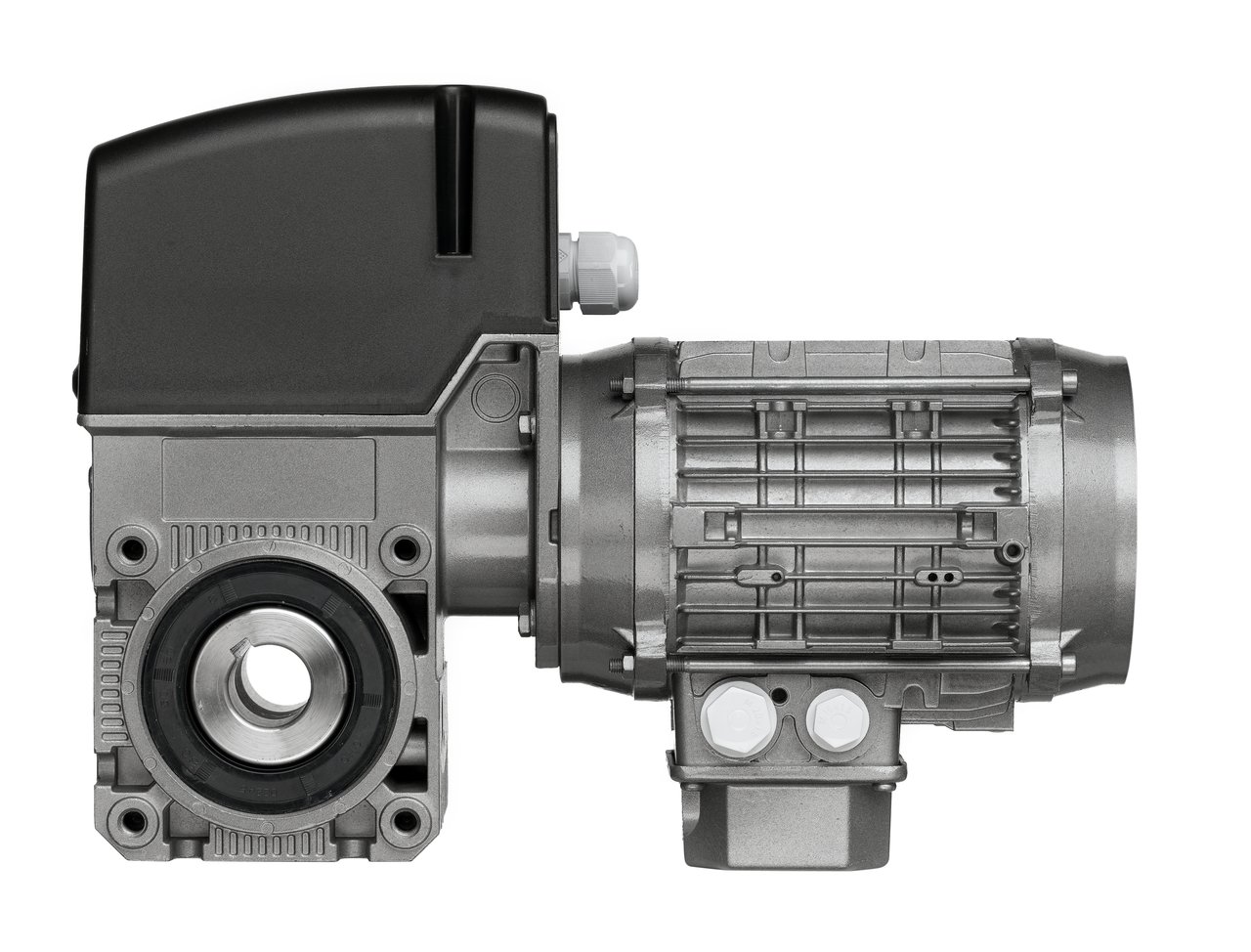

Marantec Sectional Door Drive STA 1-12-19 HD 80

The Marantec STA 1-12-19 HD 80 is a heavy-duty industrial sectional door drive designed for reliable performance in demanding environments. Built for high-load applications, it delivers robust operation and long service life for commercial and industrial doors.

FEATURES
3 Phase 380V Emergency hand chain available (standard) Emergency hand chain with maintenance release available (by request) High Use (HD) Integrated Limit Switches Robust, Strong & Durable Wide Range of Control Options Thermal Overload Protection
SPECIFICATIONS
VOLTAGE	380V / 3 PH
CURRENT INPUT	1.7A – 3A
TORQUE	120 Nm
MOTOR OUTPUT	0.55 kW
SPEED	19 Rpm
DUTY CYCLE	30 operations / Hour (Dependent on door size)
SHAFT DIAMETER	25.4mm (6.35mm keyway)
TEMPERATURE RANGE	-20º to +60º
PROTECTION	IP65
DIMENSIONS	438 x 191 x 245mm
WEIGHT	23 Kg
