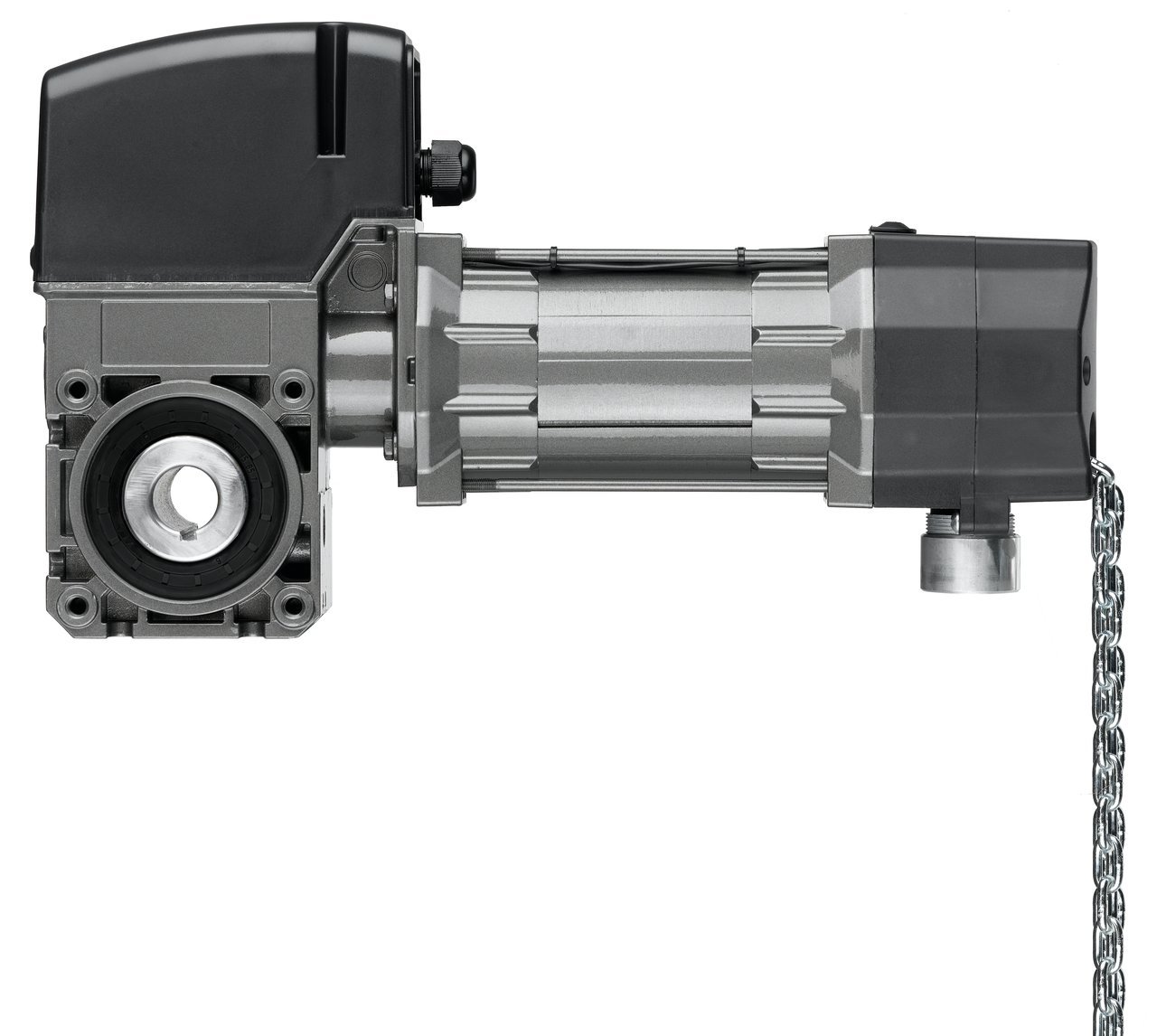

The Marantec STA 1-14-19 60 is a robust industrial sectional door drive designed for reliable performance in commercial and industrial environments. It delivers efficient and consistent operation for medium to heavy-duty door applications.
| FEATURES | |
|
|
| SPECIFICATIONS | |
| VOLTAGE | 380V / 3 PH |
| CURRENT INPUT | 2.4 A – 3.5A |
| TORQUE | 140 Nm |
| MOTOR OUTPUT | 0.65 kW |
| SPEED | 19 Rpm |
| DUTY CYCLE | 20 operations / Hour (Dependent on door size) |
| SHAFT DIAMETER | 25.4mm (6.35mm keyway) |
| TEMPERATURE RANGE | -20º to +60º |
| PROTECTION | IP65 |
| DIMENSIONS | 429 x 104 x 245mm |
| WEIGHT | 15 Kg |
|
|
|
