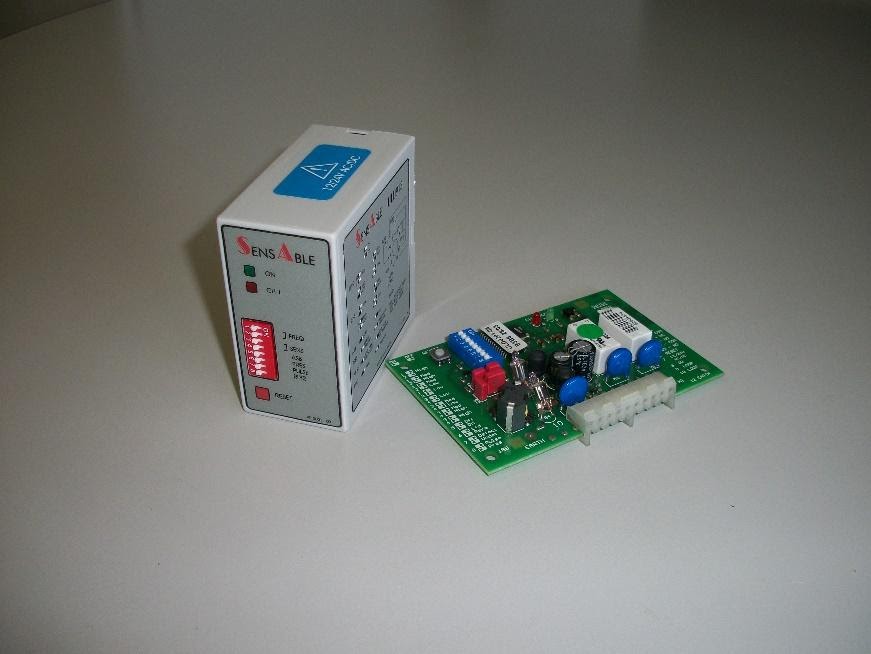

SENSABLE Sensors Loop Detector

SENSABLE Sensors Loop Detector

R1, 950.00

IDEAL INDUCTIVE LOOP DETECTOR For

Parking Barriers
Industrial Door Access Control
Vehicle Access Control
Motorized Gates and Doors

Specifications: Single or dual channel configurations; Self-tuning range; Strong loop field strength; Voltage: 230V AC or 12/24V DC; Current: CONSUMPTION 100 Ma max

FEATURES
Parking Barriers Industrial Door Access Control Vehicle Access Control Motorized Gates and Doors Single or dual channel configurations Self-tuning range Strong loop field strength High interference immunity Selectable output configuration Permanent presence feature Direction logic on dual channel Compact housing
SPECIFICATIONS
VOLTAGE	230V AC or 12/24V DC
CURRENT CONSUMPTION	100 Ma max
TEMPERATURE RANGE	-40º to +80ºC
INDICATIONS	2 LED’s
Green	Power
Red	Output per channel
SENSITIVITY	Four steps adjustable:
INDUCTIVE RANGE	20 – 1500uH
DIMENSIONS	76 x 40 x 75mm

(The Company reserves the right to amend product specifications and information without notice.)
