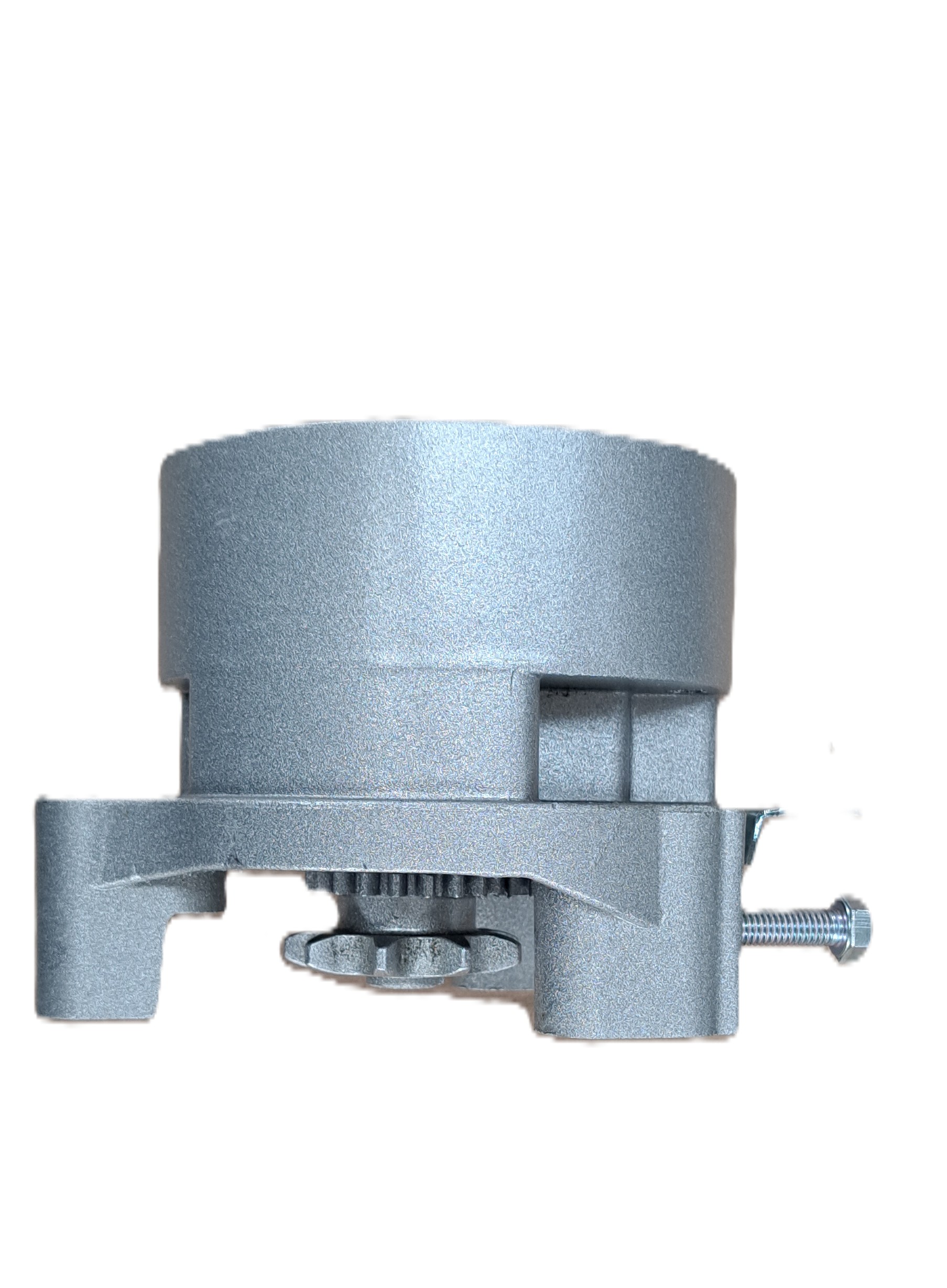

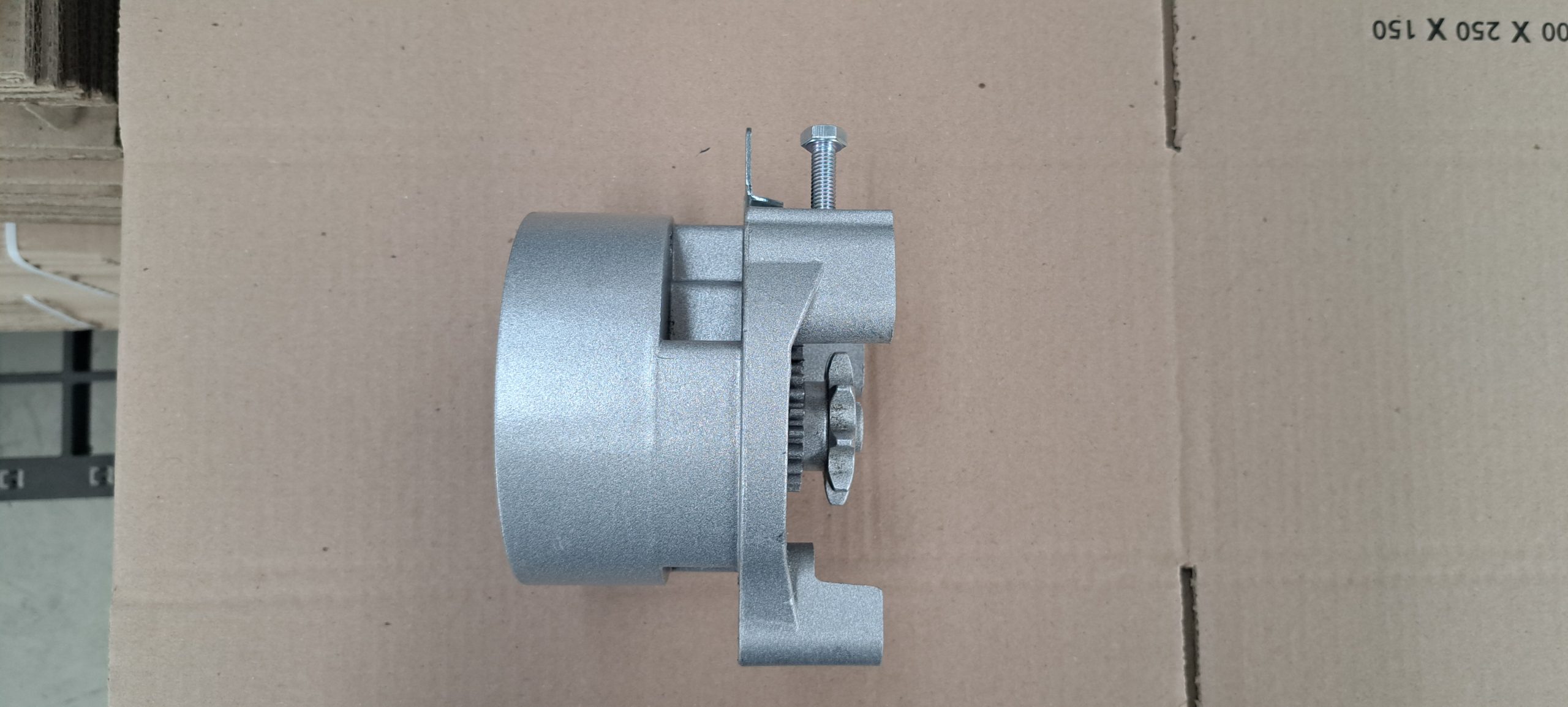

Marantec Industrial Gearbox 600 (Replacement Industrial Drive Gearbox)

The Marantec Industrial Gearbox 600 is a replacement drive gearbox assembly used in industrial door operator systems, particularly for high-load sectional and roller shutter doors.

It forms the core mechanical transmission unit between the motor and the door shaft, converting motor output into high torque, low-speed rotational movement required to safely open and close heavy industrial doors.

Within the Marantec ecosystem, gearboxes like this are typically:

• Integrated into STA / MDF / MTZ industrial operators
• Designed for modular replacement and maintenance
• Built for continuous-duty industrial environments

Key Features

• Heavy-duty industrial drive gearbox (size class “600”)
• Designed for high torque transmission
• Compatible with Marantec industrial operator systems
• Typically uses worm gear or multi-stage gear reduction
• Long service life under frequent cycling
• Replaceable unit for maintenance/repair
• Optimised for smooth, controlled door movement

Technical Specifications

(Consolidated from Marantec industrial drive ranges and gearbox classes)

How It Works

• The electric motor rotates at high speed / low torque
• The gearbox:
  • Reduces speed
  • Increases torque significantly
• Output shaft drives:
  • Door shaft
  • Chain or direct coupling system

This enables controlled lifting of heavy doors with minimal strain on the motor.

Design & Construction

Typical Marantec industrial gearboxes use:

• Worm gear systems
  • Smooth and quiet operation
  • Self-locking characteristics (important for safety)
• Hardened steel components
• Precision-machined housings
• Long-life lubrication systems

Example: industrial Marantec drives use bronze worm wheels and steel worm shafts for durability under load

Typical Applications

• Industrial sectional doors (warehouses, factories)
• Roller shutter doors
• High-speed doors (paired with MTZ drives)
• Commercial access systems

Used where:

• Heavy door mass
• High usage cycles
• Reliable torque transmission is critical

Replacement & Maintenance

The Gearbox 600 is typically supplied as:

• A replacement spare part for worn or failed gearboxes
• A matched component for specific operator models

Signs replacement is needed:

• Excessive noise or vibration
• Loss of torque / slipping
• Oil leakage
• Mechanical wear or failure

Safety & Performance Notes

• Gearbox contributes to:
  • Load holding (anti-drop characteristics)
  • Smooth acceleration/deceleration
• Must be:
  • Correctly aligned with motor and shaft
  • Installed with proper torque settings
• Incorrect replacement can:
  • Damage motor
  • Affect door balance and safety
