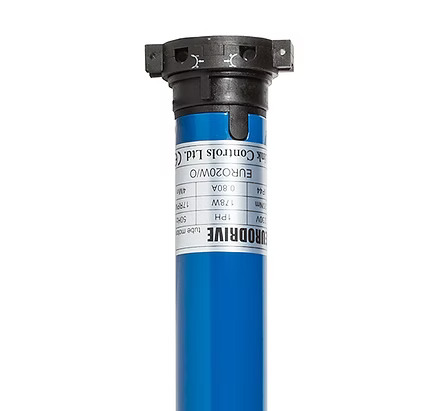

EURODRIVE 20 Tubular motor ED20 – No manual override

Silent tubular motor with mechanical limits, multiple control options, and adaptors to suit tube diameters from 60mm to 101.6mm.

Specifications: Silent Operation; Mechanical Limits; Adaptors to suit tube Ø 60mm to 101.6mm; Current: 0.8 A; Torque: 20 Nm; Speed: 17 RPM

FEATURES
Silent operation Mechanical limits Adaptors to suit tube Ø 60mm to 101.6mm From 21mm offset including mounting bracket Wide range of control options
SPECIFICATIONS
POWER SUPPLY	230V 50Hz
CURRENT	0.8 A
POWER	178 W
TORQUE	20 Nm
SPEED	17 RPM
LIFTING CAPACITY	30kg @ 100mm; 35kg @ 90mm; 35kg @ 80mm; 45kg @ 70mm; 50kg @ 60mm; 55kg @ 50mm
STANDARD ADAPTORS FOR TUBES	101.6mm x 3.66mm (94mm); 101.6mm x 1.63mm (97mm); 89mm x 1.5mm (85mm); 80mm x 1.5mm (76mm); 80mm x 2mm (75mm); 70mm x 1.5mm (67mm); 64mm x 1.5mm (60mm); 63mm x 1mm (60mm); 60mm x 1.5mm (56mm); 70mm Octagonal (67mm); 60mm Octagonal (57mm); 50mm Octagonal (48mm)
